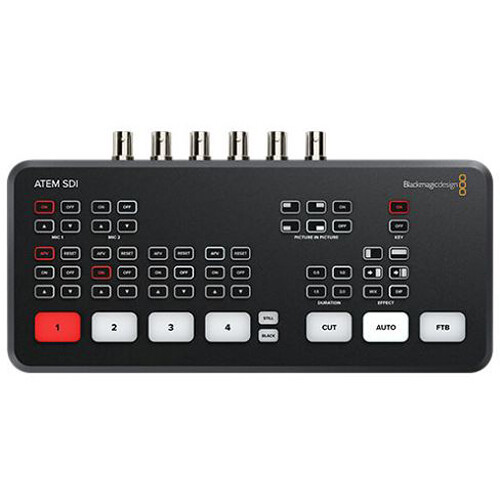

Blackmagic ATEM SDI

The Blackmagic ATEM SDI brings the power of the ATEM Mini series into the SDI world, offering professional 3G-SDI inputs and outputs for broadcast cameras and recorders. Its ultra-portable design allows you to fit a complete live production system into a backpack, making it ideal for mobile productions, interviews, worship services, and corporate events. Unlike HDMI-based switchers, SDI ensures longer cable runs, better reliability, and compatibility with professional gear.

Detailed Specifications

Connections

• ATEM SDI (Base Model):
  • 4 × 3G-SDI inputs with format converters and re-sync.
  • 2 × SDI program outputs.
  • 2 × 3.5mm stereo mini jack audio inputs.
  • USB-C 2.0 for webcam out, software control, and updates.
  • Ethernet 10/100 BaseT for software control and updates.
• ATEM SDI Extreme ISO:
  • 8 × 3G-SDI inputs with re-sync and format converters.
  • 4 × SDI program outputs.
  • 2 × 3.5mm stereo mini jack audio inputs, 1 × 3.5mm stereo audio output.
  • 2 × USB-C 3.1 Gen 1 for external drive recording, webcam out, and updates.
  • Ethernet 10/100/1000 BaseT for streaming and control.

 Video Standards

• HD Input Standards: 720p50, 720p59.94, 720p60; 1080p23.98–60; 1080i50, 1080i59.94, 1080i60.
• HD Output Standards: Matches input standards.
• Video Sampling: 4:2:2 YUV.
• Color Precision: 10-bit.
• Color Space: Rec 709.
• Real-time hardware colorspace conversion.

 Key Features

• ISO Recording (Extreme ISO model): Records 9 separate H.264 streams (8 clean feeds + program output).
• DaVinci Resolve Integration: Saves project file for post-production editing.
• Upstream Keyers: 4.
• Downstream Keyers: 2.
• Advanced Chroma Keyers: Up to 4.
• Linear/Luma Keyers: Up to 4.
• DVE with borders and drop shadow: 2.
• Pattern Generators: 5.
• Color Generators: 2.

 Audio

• Fairlight Audio Mixer:
  • ATEM SDI: 6-input × 2-channel mixer.
  • ATEM SDI Extreme ISO: 11-input × 2-channel mixer.
• Selectable Modes: On/Off/Audio-Follow-Video per channel.
• Enhancements: Compressor, Gate, Limiter, 6-band parametric EQ.
• Analog Input Delay: Up to 8 frames.
• Mic Plug-In Power: Available on both 3.5mm mini jack inputs.

 Streaming & Recording

• Direct Streaming: Supports RTMP and SRT over Ethernet or shared internet via USB-C.
• Blackmagic Cloud Stream Router: Compatible for cloud-based streaming.
• Direct Recording: USB-C expansion port records directly to external drives.
• Video Recording (Extreme ISO):
  • 8 × SDI ISO inputs as H.264 .mp4 files (up to 70Mb/s).
  • Program output recorded as H.264 .mp4 file with AAC audio.

 Control & Interface

• Built-in control panel with tactile buttons.
• ATEM Software Control included (Mac & Windows).
• Compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel.
• Minimum monitor resolution: 1366 × 768.

Why You Should Purchase It

• Professional SDI workflow: Perfect for broadcast cameras and long cable runs.
• Portable design: Fits into small bags, enabling mobile live production.
• Multi-camera flexibility: Connect up to 8 cameras for dynamic angles.
• ISO recording for editing: Re-edit every angle later in DaVinci Resolve.
• Direct streaming capability: Stream securely without needing a separate computer.
• Advanced audio tools: Built-in Fairlight mixer ensures broadcast-quality sound.
• Versatile use cases: Ideal for studios, worship services, education, corporate events, and live performances.
