YoloLiv YoloBox Extreme All-in-One Multi-Cam Livestreaming

YoloLiv YoloBox Extreme All-in-One Multi-Cam Livestreaming

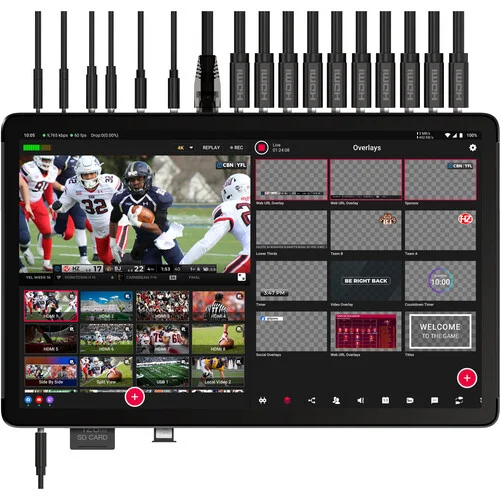

The YoloLiv YoloBox Extreme is a powerhouse all-in-one multi-cam livestreaming device designed for professionals who want portability, flexibility, and uncompromising 4K quality. With 8 HDMI inputs, ISO recording, and a massive 11.2-inch OLED touchscreen, it redefines live production by eliminating the need for a computer while delivering studio-grade results.



Detailed specifications

Dimensions & Build

• Height: 29mm
• Width: 167mm
• Length: 264mm
• Weight: ≈ 1500g
• Mounting: ¼’’ screw hole for tripods/cameras

 Video Inputs & Outputs

• 8 HDMI Inputs: Up to 5×4K60 with built-in scaler
• 2 HDMI Outputs: Assignable Program/Multiview Out in 4K
• USB Type-A 3.0 (×2): For webcams, hard drives, USB dongles
• USB Type-C (×2): One fully functional input, one for charging
• Ethernet (RJ-45): Stable wired internet connection
• SD Card Slot: Save files, load videos/graphics
• Nano-SIM Slot: 4G LTE connectivity

 Display

• 11.2-inch OLED touchscreen
• Resolution: 2560 × 1530 (2.5K)
• Brightness: 450 nits (≈ LCD 800–1000 nits)
• Refresh Rate: 120Hz
• Contrast Ratio: 1500:1
• Wide viewing angle, NTSC 108% color gamut

 Performance

• CPU: Qualcomm Snapdragon 8 Gen 2
• OS: Android 13
• Battery: 10,000mAh / 90Wh, up to 10 hours runtime
• Power Consumption: <45W
• Charging: USB Type-C, 9V/12V/15V ⎓ 3A

 Connectivity

• Wi-Fi 6/7 (2.4G/5G)
• Bluetooth 5.3
• Ethernet 10/100/1000 Mbps
• 4G LTE: Nano-SIM, supports multiple global bands

 Audio

• Mic In (3.5mm): Mono microphone input
• Line In (3.5mm): Stereo audio mixer input
• Audio Out (3.5mm): Headphone monitoring
• Digital Audio Inputs: USB-A, HDMI, USB-C
• Digital Audio Outputs: HDMI embedded, USB embedded, RTMP streams
• Audio Formats: 32kHz/44.1kHz/48kHz, 16-bit
• Encoding: AAC, 2-channel

 Streaming & Recording

• Streaming Protocols: RTMP, RTMPS, SRT, NDI, RTSP
• Video Input Resolution: 480p/720p/1080p (up to 60fps), 4Kp60
• Video Output Resolution: 480p/720p/1080p (up to 60fps), 4Kp60
• Encoding Formats: H.264, H.265
• Bitrate Control: CQ, VBR, CBR
• Recording Format: MP4
• ISO Recording: Individual input recording up to 4K30

 Advanced Features

• MultiCam Instant Replay
• Graphic Overlays (logos, lower thirds, titles)
• Scoreboard integration for sports
• PTZ camera control (preset up to 5 positions)
• Vertical crop output for social media (TikTok, Instagram)
• Multi-view layouts and scene switching



Why Purchase It?

• Professional-grade streaming without needing a computer.
• Portability – fits in a backpack, ideal for on-location shoots.
• Future-proof connectivity with HDMI, USB, NDI, SRT, and 4G LTE.
• Ease of use – intuitive touchscreen interface like an iPad.
• Versatility – perfect for sports, events, houses of worship, corporate presentations, and content creators.
• Reliability – network bonding ensures uninterrupted streams.
• Creative freedom – ISO recording and instant replay expand production possibilities.
